Ted Schaefer - Member 0028 - 1986 Black

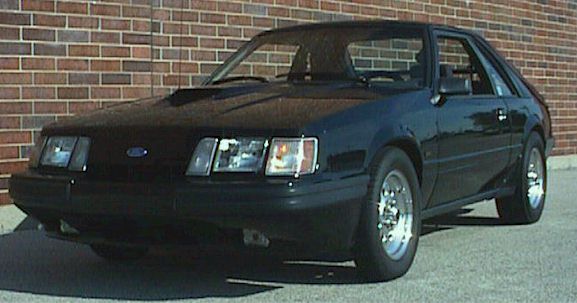

I am the third owner of this 86 1C (black) SVO. It has a cloth interior and no sunroof. I purchased it in September 1991 with just over 57,000 miles. I took it out for a test drive and was hooked. I scraped up some cash, got a loan for the remainder of the balance (with some assistance from the folks) and drove it home. This was my first "real" car. I drove the car for a couple of months and put it away for winter storage. Since then I have used winter storage time for most of my resto/mods.


My most recent project was having the car repainted with a better-than-factory black/clearcoat paint job. The dealership body shop (yes, but this is not your ordinary dealership body shop) did a great job, with very few flaws. I replaced the doors and hatchback with new factory Ford sheetmetal, due to salt/rust damage. Word of warning: You can no longer get pre-87 doors, without a thorough search! I opted to get the 87-93 doors and have them modified.

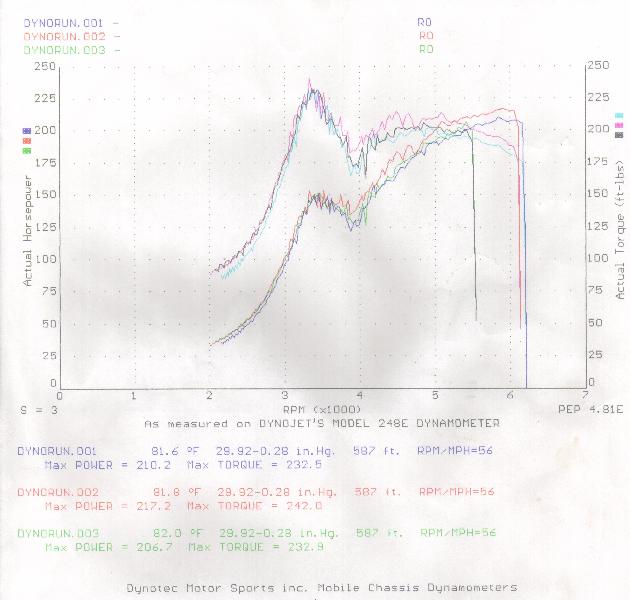

While I would like to restore my car to factory specs, I don't think this car is right for that. It has a questionable damage history (looks like it has been in two minor accidents) and I am not ready for a true restoration just yet. I don't ever plan on getting rid of this car, so it will always be my tinker/cruise/race car. What I learned on my former 2.3L cars has been applied to this one with positive results, so far. You may view my Dyno plot from Carlisle. Up till now I have only drag raced my car (best = 13.7X@100mph), but would like to try auto-x at some time (what the car was really made for). I wanted to make the car mine, but still maintain the SVO character and mystique. You be the judge.

Drivetrain Modifications:

Ram-air (home-made)
8.8" rear axle assembly with Trac-lok differential and 4.10:1 gears
K&N air filter (stock style in factory air box)
Removed air box screen
Crankcase secondary oil separator (home-made)
Internally modified turbo compressor housing (approx. boost increase of 1-2psi)
Removed casting flash and contoured features on vane-air meter, turbo inlet elbow and throttle body
Enlarged intercooler inlet by 6mm, outlet by 4mm and smoothed casting roughness
TPS set to 0.80V
Removed divider from upper intake and knife-edged lower intake
Ported and polished lower intake manifold, head and exhaust manifold
Enlarged turbo exhaust elbow outlet 8mm
5-angle valve job (race style) with stock valves
Ford Motorsport HD valve springs and anti-pump up tappets
Ford Motorsport roller cam (A237) and factory roller followers
Esslinger adjustable cam sprocket
MSD 6AL ignition box
Accel Super E-coil
Motorcraft plug wires and Autolite 764 plugs
SuperChips 255hp chip (circa 1992) for PE computer
Custom 3" downpipe w/o cat
Factory cat-back exhaust
155lph in-tank fuel pump


Suspension Modifications:

Kenny Brown double-cross subframe connectors
Energy Suspension bushings in all 8 rear trailing arm locations,
front A-arms, transmission cross member, rack & pinion and
swaybar end links


Interior/Exterior Modifications:

Dual a-pillar gauge pod (2 1/8" gauges)
Autometer vac/boost gauge and shift light
Cyberdyne electronic fuel pressure gauge
Halmeter air/fuel meter
Manual override electric fan switch
Hurst leather wrapped shifter t-handle
BFG Comp-TA 225/50ZR16 & 245/50ZR16 (F/R)
Cockpit mounted fire extinguisher (viewed two street rods burn up)


Future Modifications:

Energy Suspension trans mount and sway bar bushings
